LeakTEC
product features:
|
·Simple installation and operation ·Quick check ·Bipolar detection (patented) ·Production line integration ·High-precision detection electrode ·Nondestructive testing ·Inspection of single or multiple parts ·No corona discharge |
 |
Leak detection for non-conductive parts

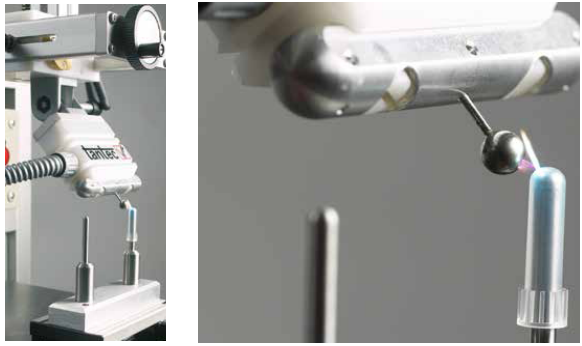

LeakTEC can detect single layers of non-conductive materials for leaks, pinholes or cracks without damaging the product. LeakTEC detects the leakage of the product by detecting whether there is contact between the high-voltage electrode (DC) and the trans electrode (can be grounded or used as the opposite electrode).
LeakTEC is mainly used to detect leaks in medical equipment such as medical test tubes, containers, pipettes, cannulas and extruded films (for the production of medical bags).
Because plastic products are insulators, it is possible to automatically detect pinholes smaller than 3 microns by introducing a potential between the detection electrode and an electrical ground (such as a metal clamp or a metal shaft). If there are cracks or pinholes in plastic products, electrical contacts can be created between the electrodes and the ground. The contact is detected by connecting the generator module on the main controller. The main controller can either initiate the next "defective" function or monitor the production trend and feedback for early adjustment or repair. In order to ensure that all the electrodes can work, each electrode has a corresponding anti-electrode for testing. The signal from the trans-electrode is received by the PLC and processed.
Tantec's bipolar system (patented) limits high voltage and reduces static electricity.
Features：
·Simple installation and easy operation Easy to install on the production line and easy to operate.
·Quick detection Pinhole detection can be completed online or exponentially. The general detection time is 0.03s.
·Bipolar detection (patented) limits high voltage and minimizes static electricity.
·Production line integration can be integrated into the current production line.
·High-precision detection electrode Detects small and fragile parts.
·Non-destructive testing The test parts are not damaged and do not cause any waste.
·Inspection of single or multiple parts Add multiple tested trans electrodes to handle multiple products.
·Corona-free discharge Corona discharge can be eliminated with DC voltage.
